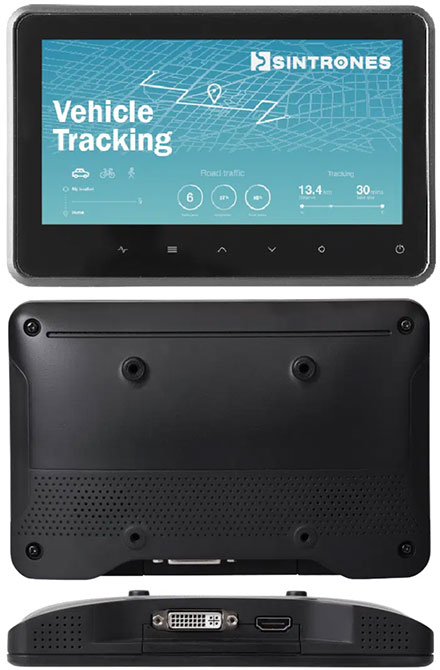

VDM-700HD 7" TFT - Touchscreen (AIO-connector, HDMI, Multi-Touch, only f. FleetPC)

VDM-700HD 7" TFT - Touchscreen (AIO-connector, HDMI, Multi-Touch, only f. FleetPC)
3D 360° View
  • Only for FleetPC-System
  • AIO Kabel !
  • Multi Touch !
  • 9-48V DC Eingang !

  • Effortless one cable connection
  • 1280(H)×720(V) High Resolution
  • High Brightness 600 nits
  • Secondary Video Input (HDMI)
  • Projected Capacitive Multi-touch
  • 9-48V DC Input and Operating Temp.: -20~60°C
  • Vehicle Regulation E13
[more]

Share

349.00 EUR
incl. 19% VAT, plus shipping
Available in 6 weeks.
Will be ordered for you.
Add to cart

  • Effortless one cable connection
  • 1280(H)×720(V) High Resolution
  • High Brightness 600 nits
  • Secondary Video Input (HDMI)
  • Projected Capacitive Multi-touch
  • 9-48V DC Input and Operating Temp.: -20~60°C
  • Vehicle Regulation E13


VDM-700HD is a touch monitor designed with wide power input voltage range and operating temperature which are dedicated for In-Vehicle computing. An ideal operating terminal for fleet management and smart cockpit applications on commercial vehicles. The panel resolution of 1280*720 and typical brightness of 600 nits excel among other 7” monitors in the market. SINTRONES’ proprietary cable design which delivers video, audio, touch signal, and power all in one cable connection provides effortless deployment and installation

LCD
Screen Size / Ratio 7 inches / 16:9
Resolution 1280 (H)×720 RGB(V)
Active Area (mm) 156.48(H)×80.136(V)mm
View Angle (H/V) 80/80/80/80 deg.
Brightness (nits) 600 nits (typical)
Contrast Ratio 1000:1 (typical)
Backlight Type LED

Touch
Type Projected Capacitive w/ Multi-touch

I/O
Multi-IO 1 x DVI-D 29 pins Connector for DVI-D Single Link Video, Touch (USB 2.0)
Line in, MIC out, and DC 9~48V Power input
* SINTRONES custom pin definition for SINTRONES optional cable only
Attention : AIO-cables are optionally available. Available in 1,5m or 5m length. Compatible with SBOX-2602/2622/2301/2321,VBOX-3131(FleetPC-4F),VBOX-3130(FleetPC-4D),VBOX-3611(FleetPC-8-i7C,ABOX-dp(FleetPC-11))
Secondary Video Input 1 x HDMI

Audio
Microphone 2 x bulit-in digital MIC
Speaker Stereo speaker with built-in amplifier

Mechanical
Dimension 188.5 (L) x 124.2 (W) x 31.4(H) mm
Mounting VESA MIS-D 75mm
Weight 510g
IP Rating (Front) IP65; (others) IP4X

Environmental
Operating Temp. -20ºC ~ 60ºC w/0.6 m/S airflow
Storage Temp. -40ºC ~ 80ºC
Relative Humidity 10% RH – 90% RH (non-condensing)
Vibration IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating
Shock Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-
trailers=15G (11ms)
Certifications CE, FCC Class A, E13

Ordering Information
Model Number VDM-700HD
Description 16:9 7" 600nits In-Vehicle Monitor w/ P-CAP multi-touch
Country of Origin Made in Taiwan
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
Manual Download
